一、概述
这些机加工和铸造卡箍(连同装有o形圈的定心环)用于配合KF法兰。
适用于弹性体密封
铰链式连接两部分 翼形螺母最大扭矩:2Nm
二、规格

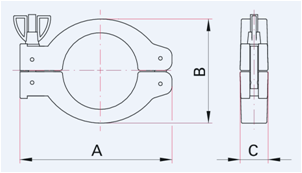

Flange Size [DN] | Material | A [mm] | B [mm] | C [mm] | Item No.
| 16 | Aluminum | 63 | 42.5 | 16 | DC110BSR016 | 25 | Aluminum | 72 | 54 | 16 | DC110BSR025 | 40 | Aluminum | 90 | 70 | 16 | DC110BSR040 | 50 | Aluminum | 114 | 90 | 20 | DC110BSR050 | 16 | Stainless Steel 304 | 59.5 | 36 | 15.5 | DC120BSR016 | 25 | Stainless Steel 304 | 73.5 | 49 | 15.5 | DC120BSR025 | 40 | Stainless Steel 304 | 90 | 64 | 16 | DC120BSR040 | 50 | Stainless Steel 304 | 112 | 82 | 20 | DC120BSR050 |
三、联系方式:上海典初真空技术有限公司 手机:+86 139 1718 9384 邮箱:dianchu_vacuum@163.com 网址:www.dianchuvacuum.com QQ: 1992027585
|
