ISO-KF/CF转接

一、概述

Adapter flanges allow the mating of one type of flange system to another. All of our flange adapters are manufactured from 304 series stainless steel tubing and flanges.

Pressure range:2.5bar to 10-7mbar(elastomer seal)

Other combinations and custom lengths available on short notice

* Please boserve limits for seal materials and fastening elements.

二、规格

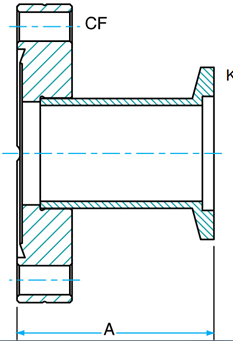

Flange Size [DN] CF	CF Flange OD	Flange Size KF	Material	A [mm]	Item No. DC
16	1.33"	16	S.S.304	44.4	DC420RUG016-016
16	1.33"	25	S.S.304	41.1	DC420RUG016-025
16	1.33"	40	S.S.304	41.1	DC420RUG016-040
16	1.33"	50	S.S.304	42.4	DC420RUG016-050
40	2.75"	16	S.S.304	45.4	DC420RUG040-016
40	2.75"	25	S.S.304	45.4	DC420RUG040-025
40	2.75"	40	S.S.304	45.4	DC420RUG040-040
40	2.75"	40	S.S.304	55.6	DC420RUG040-050
40	2.75"	50	S.S.304	45.4	DC420RUG040-050
50	3.375"	40	S.S.304	45.7	DC420RUG050-040
63	4.50"	25	S.S.304	49.5	DC420RUG063-025
63	4.50"	40	S.S.304	49.5	DC420RUG063-040
63	4.50"	50	S.S.304	49.5	DC420RUG063-050
100	6.00"	16	S.S.304	49.5	DC420RUG100-016
100	6.00"	25	S.S.304	51.3	DC420RUG100-025
100	6.00"	40	S.S.304	51.3	DC420RUG100-040
100	6.00"	50	S.S.304	51.3	DC420RUG100-050
160	8.00"	25	S.S.304	52.8	DC420RUG160-025
160	8.00"	40	S.S.304	52.8	DC420RUG160-040
160	8.00"	50	S.S.304	52.8	DC420RUG160-050
