Flange to quick connect coupling adapters allow the mating of one type of flange system to a quick connect coupling. All of our flange to fitting adapters are manufactured from 304 series stainless steel.
Flange to Quick Connect Coupling Adapter Features: Makes a vacuum joint with any smooth-surfaced standard O.D. tube Commonly used to attach tubulated ion or thermocouple gauges to a system Adapters available in either CF or KF flange terminations CF flanged adapters are UHV compatible; dual coupling versions ideal for easy fluid circulation
二、规格

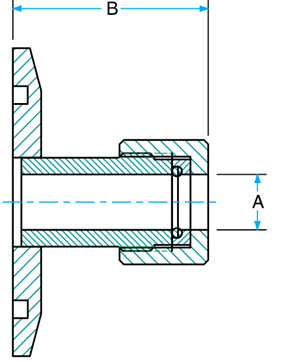

Flange Size OD | Nominal Tube OD (inch) | Material | A [mm] | B [mm] | Item No. DC | KF10 | 0.5" | S.S.304 | 13.2 | 38.1 | DC120XQV010-13 | KF16 | 0.25" | S.S.304 | 6.9 | 35.6 | DC120XQV016-07 | KF16 | 0.5" | S.S.304 | 13.2 | 38.1 | DC120XQV016-13 | KF16 | 0.75" | S.S.304 | 19.6 | 45.7 | DC120XQV016-19 | KF25 | 0.5" | S.S.304 | 13.2 | 38.1 | DC120XQV025-13 | KF25 | 0.63" | S.S.304 | 16.2 | 43.2 | DC120XQV025-16 | KF25 | 0.75" | S.S.304 | 19.6 | 45.7 | DC120XQV025-19 | KF25 | 1" | S.S.304 | 25.9 | 50.8 | DC120XQV025-26 | KF25 | 1.13" | S.S.304 | 29 | 50.8 | DC120XQV025-29 | KF40 | 0.5" | S.S.304 | 13.2 | 38.1 | DC120XQV040-13 | KF40 | 0.75" | S.S.304 | 19.6 | 45.7 | DC120XQV040-19 | KF40 | 1" | S.S.304 | 25.9 | 50.8 | DC120XQV040-26 | KF40 | 1.13" | S.S.304 | 29 | 50.8 | DC120XQV040-29 | KF40 | 1.25" | S.S.304 | 32.3 | 50.8 | DC120XQV040-32 | KF40 | 1.38" | S.S.304 | 35.1 | 53.3 | DC120XQV040-35 | KF40 | 1.5" | S.S.304 | 38.6 | 61 | DC120XQV040-38 | KF50 | 0.5" | S.S.304 | 13.2 | 38.1 | DC120XQV050-13 | KF50 | 0.75" | S.S.304 | 19.6 | 45.7 | DC120XQV050-19 | KF50 | 1" | S.S.304 | 25.9 | 50.8 | DC120XQV050-25 | KF50 | 1.13" | S.S.304 | 29 | 50.8 | DC120XQV050-29 | KF50 | 1.5" | S.S.304 | 38.6 | 61 | DC120XQV050-38 | KF50 | 2" | S.S.304 | 51.3 | 61 | DC120XQV050-51 |
