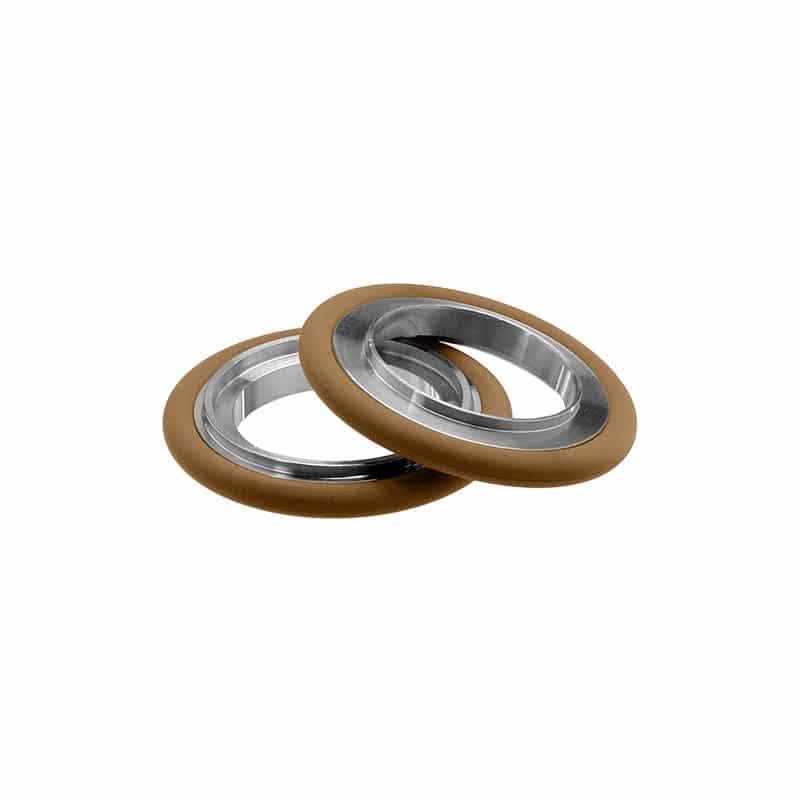

ISO-K 中心圈




一、概述

These centering rings are used for mating ISO flanges and include both the centering ring and o-ring. The ISO flange (also called Large ISO) is used for HV chamber ports and is available in two distinct styles; ISO-K which uses clamp fasteners and ISO-F which uses nut and bolt fasteners.


ISO Centering Rings Feature:

Rings available in stainless steel inner/aluminum outer combination or aluminum

二、规格


Flange Size
    [DN]		Material
C/R

Materia

lO-Ring

Available AreaA
[mm]		B
[mm]		C
 [mm]

D

[mm]

E

[mm]		Item No.
DC
ISO63S.S304VitonU.S.A6769.683.95.33DC315ZRG063
ISO80S.S304VitonU.S.A8082.683.95.33DC315ZRG080
ISO100S.S304VitonU.S.A100101.683.95.33DC315ZRG100
ISO160S.S304VitonU.S.A150152.683.95.33DC315ZRG160
ISO200S.S304VitonU.S.A210212.683.95.33DC315ZRG200
ISO250S.S304VitonU.S.A257.5260.483.95.33DC315ZRG250
ISO320S.S304VitonU.S.A312317.3125.67DC315ZRG320
ISO400S.S304VitonU.S.A394399.2125.67DC315ZRG400
ISO500S.S304VitonU.S.A494500.2125.67DC315ZRG500
ISO63S.S304NBRU.S.A6769.683.95.33DC316ZRG063
ISO80S.S304NBRU.S.A8082.683.95.33DC316ZRG080
ISO100S.S304NBRU.S.A100101.683.95.33DC316ZRG100
ISO160S.S304NBRU.S.A150152.683.95.33DC316ZRG160
ISO200S.S304NBRU.S.A210212.683.95.33DC316ZRG200
ISO250S.S304NBRU.S.A257.5260.483.95.33DC316ZRG250
ISO320S.S304NBRU.S.A312317.3125.67DC316ZRG320
ISO400S.S304NBRU.S.A394399.2125.67DC316ZRG400
ISO500S.S304NBRU.S.A494500.2125.67DC316ZRG500
ISO63AluminumVitonU.S.A6769.683.95.33DC317ZRG063
ISO80AluminumVitonU.S.A8082.683.95.33DC317ZRG080
ISO100AluminumVitonU.S.A100101.683.95.33DC317ZRG100
ISO160AluminumVitonU.S.A150152.683.95.33DC317ZRG160
ISO200AluminumVitonU.S.A210212.683.95.33DC317ZRG200
ISO250AluminumVitonU.S.A257.5260.483.95.33DC317ZRG250
ISO320AluminumVitonU.S.A312317.3125.67DC317ZRG320
ISO400AluminumVitonU.S.A394399.2125.67DC317ZRG400
ISO500AluminumVitonU.S.A494500.2125.67DC317ZRG500
ISO63AluminumNBRU.S.A6769.683.95.33DC318ZRG063
ISO80AluminumNBRU.S.A8082.683.95.33DC318ZRG080
ISO100AluminumNBRU.S.A100101.683.95.33DC318ZRG100
ISO160AluminumNBRU.S.A150152.683.95.33DC318ZRG160
ISO200AluminumNBRU.S.A210212.683.95.33DC318ZRG200
ISO250AluminumNBRU.S.A257.5260.483.95.33DC318ZRG250
ISO320AluminumNBRU.S.A312317.3125.67DC318ZRG320
ISO400AluminumNBRU.S.A394399.2125.67DC318ZRG400
ISO500AluminumNBRU.S.A494500.2125.67DC318ZRG500
ISO63S.S304VitonEurope687083.95.33DC312ZRG063
ISO80S.S304VitonEurope8182.683.95.33DC312ZRG080
ISO100S.S304VitonEurope10010283.95.33DC312ZRG100
ISO160S.S304VitonEurope14815383.95.33DC312ZRG160
ISO200S.S304VitonEurope21021383.95.33DC312ZRG200
ISO250S.S304VitonEurope257.526183.95.33DC312ZRG250
ISO320S.S304VitonEurope312318125.67DC312ZRG320
ISO400S.S304VitonEurope394400125.67DC312ZRG400
ISO500S.S304VitonEurope494501125.67DC312ZRG500
ISO63S.S304NBREurope687083.95.33DC332ZRG063
ISO80S.S304NBREurope8182.683.95.33DC332ZRG080
ISO100S.S304NBREurope10010283.95.33DC332ZRG100
ISO160S.S304NBREurope14815383.95.33DC332ZRG160
ISO200S.S304NBREurope21021383.95.33DC332ZRG200
ISO250S.S304NBREurope257.526183.95.33DC332ZRG250
ISO320S.S304NBREurope312318125.67DC332ZRG320
ISO400S.S304NBREurope394400125.67DC332ZRG400
ISO500S.S304NBREurope494501125.67DC332ZRG500
ISO63AluminumVitonEurope687083.95.33DC322ZRG063
ISO80AluminumVitonEurope8182.683.95.33DC322ZRG080
ISO100AluminumVitonEurope10010283.95.33DC322ZRG100
ISO160AluminumVitonEurope14815383.95.33DC322ZRG160
ISO200AluminumVitonEurope21021383.95.33DC322ZRG200
ISO250AluminumVitonEurope257.526183.95.33DC322ZRG250
ISO320AluminumVitonEurope312318125.67DC322ZRG320
ISO400AluminumVitonEurope394400125.67DC322ZRG400
ISO500AluminumVitonEurope494501125.67DC322ZRG500
ISO63AluminumNBREurope687083.95.33DC342ZRG063
ISO80AluminumNBREurope8182.683.95.33DC342ZRG080
ISO100AluminumNBREurope10010283.95.33DC342ZRG100
ISO160AluminumNBREurope14815383.95.33DC342ZRG160
ISO200AluminumNBREurope21021383.95.33DC342ZRG200
ISO250AluminumNBREurope257.526183.95.33DC342ZRG250
ISO320AluminumNBREurope312318125.67DC342ZRG320
ISO400AluminumNBREurope394400125.67DC342ZRG400
ISO500AluminumNBREurope494501125.67DC342ZRG500
