ISO-K/KF直通法兰




一、概述

Adapter flanges allow the mating of one type of flange system to another.


All of our flange adapters are manufactured from 304 series stainless steel tubing and flanges.


二、规格

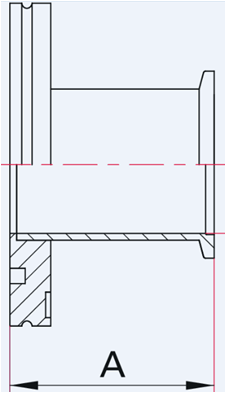

Flange Size
[DN]
Reducer Flange   Size [DN]MaterialA
[mm]

Item No.

DC

ISO63KF16S.S30446.5DC320RRG063-016
ISO63KF25S.S30446.5DC320RRG063-025
ISO63KF40S.S30446.5DC320RRG063-040
ISO63KF50S.S30446.5DC320RRG063-050
ISO63KF25S.S30442DC370RRG063-025
ISO63KF40S.S30442DC370RRG063-040
ISO63KF50S.S30442DC370RRG063-050
ISO80KF16S.S30446.5DC320RRG080-016
ISO80KF25S.S30446.5DC320RRG080-025
ISO80KF40S.S30446.5DC320RRG080-040
ISO80KF50S.S30446.5DC320RRG080-050
ISO80KF40S.S30442DC370RRG080-040
ISO80KF50S.S30442DC370RRG080-050
ISO100KF16S.S30446.5DC320RRG100-016
ISO100KF25S.S30446.5DC320RRG100-025
ISO100KF40S.S30446.5DC320RRG100-040
ISO100KF50S.S30446.5DC320RRG100-050
ISO100KF40S.S30442DC370RRG100-040
ISO100KF50S.S30442DC370RRG100-050
