CF板形螺母



一、概述

Plate nuts are for clearance (through-hole) CF flanges.


They are metal plates with 2-threaded holes, shaped to match the corresponding CF flange's bolt hole patterns and replace the individual nuts.


The plate nut’s major advantage is, once two bolts are manually started, the plate nut acts as its own backing wrench and washer—the bolts are tightened using one wrench.

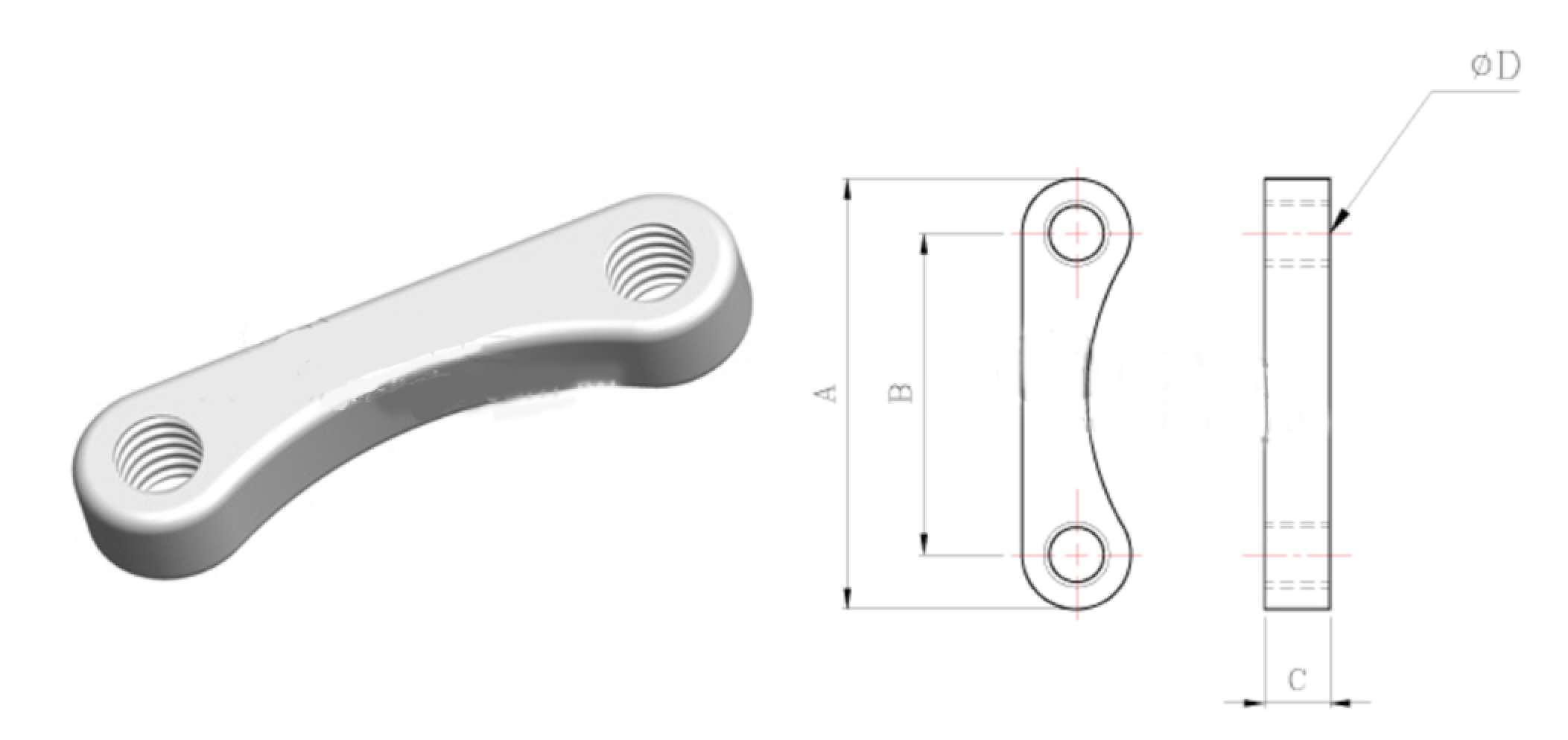

二、规格


Flange Size
[ DN ]
Thread SizeA
[ mm ]
B
[ mm ]
C
[ mm ]
D
[ mm ]
Sets per Pkg.Item No.
16M420713324DC420BMD016
40M6351229424DC420BMD040
63M8511235524DC420BMD063
100M8411225524DC420BMD100
160M8441228524DC420BMD160
200M8441230524DC420BMD200
